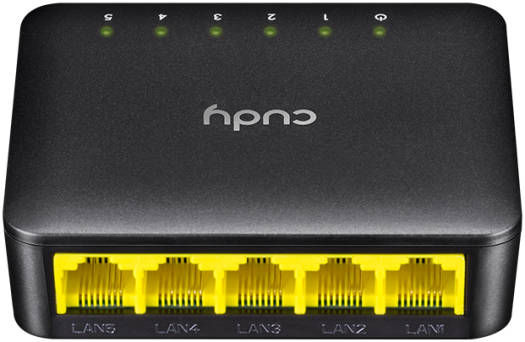

Cudy FS105D 5-Port 10/100 Switch
The Cudy FS105D is a 5-port 10/100Mbps switch ideal for small network expansion, featuring auto cable detection and energy-efficient operation for desktop or wall mounting.
Tech Specs
Model: FS105D
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Protocol: CSMA/CD
Data Rate:
Ethernet: 10Mbps (Half Duplex) / 20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex) / 200Mbps (Full Duplex)
Transmission Method: Store-and-Forward
Switching Features:
MAC address auto-learning and auto-aging
Half and Full Duplex
1.6Gbps backplane bandwidth
Interfaces: 5 × 10/100Base-TX Ports
LED Indicators: LAN~LAN5, Power
MAC Address Table: 2K entries per device
Power Supply: DC 5V 0.5A
Power Consumption:
Max: 0.9W
Idle: 0.35W
Dimensions: 88.2 × 52.7 × 21.8 mm (3.46 × 2.07 × 0.94 inches)
Weight: 49 g (1.73 oz.)
Operating Temperature: 0°C~40°C
Storage Temperature: -40°C~70°C
Relative Humidity: 10%~90%, non-condensing
Storage Humidity: 5%~95%, non-condensing
